卡特彼勒3406C 柴油机常用备件目录

1 防锈水                   88290002-597
2 冷却液                   88290002-598
3 蓝至尊机油（5 加仑/桶）  88290003-329
4 机油滤清器               88290012-929
5 冷却液过滤器             88290019-799
6 燃油预滤器（带水分离器） 88290006-658
7 燃油过滤器（初级）       88290019-798
8 燃油过滤器（次级）       88290008-685
9 启动马达                 88290013-913
10 风扇皮带                88290019-802
11 发电机                  88290008-687
12 增压器总成              88290019-803
13 水温传感器              88290019-804
14 机油压力传感器          88290019-805


压缩机其它零件常用备件目录

1 空气过滤器主滤芯         02250155-691
2 空气过滤器安全滤芯       02250155-692
3 油气分离器滤芯           250034-086
4 油过滤器维修包           250031-850
5 ***小压力阀               88290017-287
6 排气止回阀               88290017-286
6 进气阀                   88290009-185
7 温控阀维修包             02250142-940
8 温控阀维修包             02250051-747
9 放空阀维修包             02250045-132
10 减压阀维修包            048410
11 压力调节阀维修包        048409
12 压缩机主机轴封          001811A
13 AWF 润滑油5 加仑/桶    250030-757

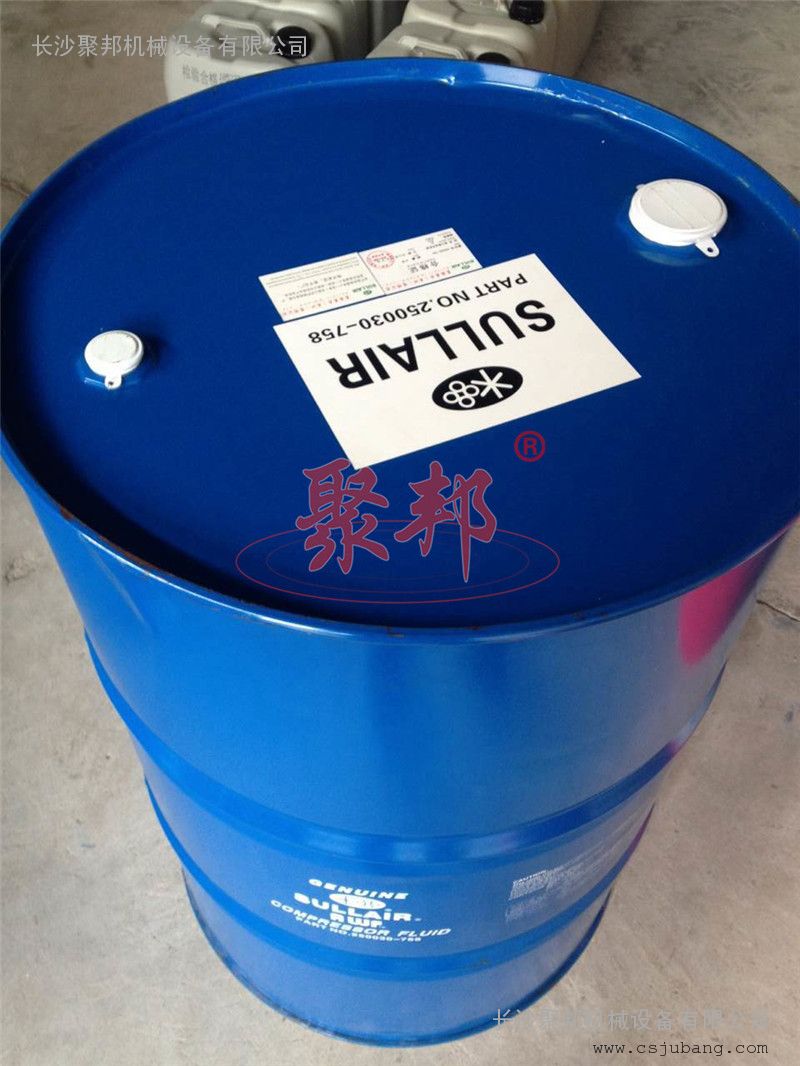

14 AWF 润滑油55 加仑/桶  250030-758

压缩机/柴油机组件零部件目录

1 02250058-425             调速气缸
2 02250119-827             压缩机主机 用于980XH 机型
02250127-159             压缩机主机用于1070XH 及1150RH 机型
3 040136                   球铰(右旋)
4 042004                   球铰(左旋)
5 250011-491               调节螺杆
6 807604-020               接头
7 824705-195               锁紧螺母（左旋）
8 828306-125               内六角紧定螺钉
9 828405-088               螺栓
10 828407-300              螺栓
11 828408-150              螺栓
12 828408-175              螺栓
13 829110-175              六角螺栓
14 837806-094              弹簧垫圈
15 837807-112              弹簧垫圈
16 837808-125              弹簧垫圈
17 837810-156              弹簧垫圈
18 838205-071              垫片
19 838208-112              大垫片
20 838210-112              平垫圈
21 868205-195              锁紧螺母（右旋）
22 88290007-079            联接体
23 88290007-083            减振器
24 88290007-084            减振器
25 88290009-427            垫片
26 88290010-805            联轴器
27 88290018-274            柴油机-压缩机支座
88291001-268              风扇用于后冷机型
88290019-389              风扇用于不带后冷机型
29 88290019-416            柴油机CAT 3406C
30 88290019-579            柴油机支座
31 88291001-155            联轴器过渡盘
32 88291001-190            汽缸支座
33 88291001-191            限位块
34 88811108-035            六角螺栓
35 88811120-075            六角螺栓
36 88812108-040            全螺纹六角螺栓
37 88812110-030            全螺纹六角螺栓
38 88812116-045            全螺纹六角螺栓
39 88812120-045                  全螺纹六角螺栓
40 88821108-068                  六角螺母
41 88821120-180                  六角螺母
42 88822108-076                  六角法兰面螺母
43 88831108-016                  平垫圈
44 88831110-020                  平垫圈
45 88831116-030                  平垫圈
46 88831120-030                  平垫圈
47 88832108-021                  弹簧垫圈
48 88832110-026                  弹簧垫圈
49 88832116-041                  弹簧垫圈
50 88832120-050                  弹簧垫圈
51 88833120-046                  大平垫圈
52 027443                        节流孔
53 02250115-272                  单向阀
54 860504-025                    弯头
55 0241771                       过滤器
56 810204-025                    接头
57 810204-012                    接头
58 841215-004                    不锈钢管
59 250008-266                    截止阀
60 842115-062                    橡胶管2ft
61 88290004-728                  软管卡箍
62 807602-015                    内外接头
压缩机进气系统零部件目录

1 02250054-861                      尼龙管1.4m
2 02250141-305                      压差指示器
3 02250155-690                      空滤
4 02250156-380                      空滤抱箍
5 040422                            法兰垫片
6 250041-286                        接头
7 824212-665                        螺母
8 829112-250                        六角螺栓
9 837812-188                        弹簧垫圈
10 873812-030                       双头螺柱
11 88290009-185                     进气阀
12 88290016-842 T                   型抱箍
13 88290018-440                     压缩机进气胶管
14 88290018-441                     空滤支座
15 88812110-025                     全螺纹六角螺栓
16 88813108-016                     六角法兰面螺栓
17 88813108-040                     六角法兰面螺栓
18 88818004-012                     十字槽盘头螺钉
19 88821108-068                     六角螺母
20 88821110-084                     六角螺母
21 88831104-008                     平垫圈
22 88831108-016                     平垫圈
23 88831110-020                     平垫圈
24 88832108-021                     弹簧垫圈
25 88832110-026                     弹簧垫圈
进气阀（88290009-185）零部件目录

1 866900-005                            堵头
2 88290008-589                          阀芯
3 828406-175                            螺栓
4 88290006-046                          进气阀端盖
5 88290009-032                          阀芯
6 02250139-188                          芯轴
7 250042-656                            小弹簧
8 826502-214                            密封圈
9 88290009-033                          弹簧座
10 88290012-468                         密封圈
11 250042-299                           活塞
12 866900-010                           堵头
13 250042-384                           弹簧
14 250042-383                           大弹簧
15 829104-075                           螺栓
16 837804-062                           垫圈
压缩机排气系统零部件目录

1 045641                             温度开关
2 250034-086                          油气分离器滤芯
3 807800-020                          堵头
4 827912-225                          六角螺栓
5 828408-150                          螺栓
6 837808-125                          弹簧垫圈
7 837812-188                          弹簧垫圈
8 88290001-031                        注油塞
9 88290002-435                        内螺纹球阀
10 88290002-436                       内螺纹球阀
11 88290002-439                       内螺纹球阀
12 88290002-688                       半法兰
13 88290002-836                       放油塞
14 88290002-909                       接管
15 88290003-038                       接头
16 88290007-065                       减振器
17 88290007-145                       半法兰
18 88290007-162                       视油镜
19 88290008-303                       垫圈
20 88290008-304                       垫圈
21 88290008-451                       罐压开关
22 88290010-843                       可调向连接弯头
88290011-135                       安全阀1 RH 机型
23
   88290010-713                       安全阀1 XH 机型
24 88290017-286                        排气止回阀
25 88290017-287                        ***小压力阀
26 88290018-123                        油气分离器
27 88290018-125                        ***小压力阀支架
28 88290018-127                        安全阀排放管
29 88290018-249                        排气管
30 88290018-250                        排气接管
31 88290018-251                        供气管支座
32 88290018-252                        机头排气管
33 88290018-549                        放油管
34 88290019-627                        接头
35 88811112-045                        六角螺栓
36 88811112-055                        六角螺栓
37 88811116-055                        六角螺栓
38 88811120-080                        六角螺栓
39 88811120-090                        六角螺栓
40 88812108-020                        六角螺栓
41 88812110-025                        六角螺栓
42 88812112-030                        六角螺栓
43 88812116-040                        六角螺栓
44 88812116-050                        六角螺栓
45 88821112-108                        六角螺栓
46 88821116-148                        六角螺母
47 88821120-180                        六角螺母
48 88831108-016                        平垫圈
49 88831112-025                        平垫圈
50 88831116-030                        平垫圈
51 88831120-030                        平垫圈
52 88832108-021                        弹簧垫圈
53 88832110-026                        弹簧垫圈
54 88832112-031                        弹簧垫圈
55 88832116-041                        弹簧垫圈
56 88832120-050                        弹簧垫圈
57 88842035-023                        O 形圈
58 88842035-047                        O 形圈
59 88842035-063                        O 形圈
60 88842035-065                        O 形圈
61 88842035-069                        O 形圈
62 88842035-085                        O 形圈
63 88842035-095                        O 形圈
冷却润滑系统零部件目录

1 020169                                  接头
2 02250101-490                            接头
3 02250111-592                            油过滤器
4 02250117-782                            过滤器
5 02250125-776                            节流孔
6 02250126-129                            视液镜
7 02250142-938                            温控阀
8 049905                                  单向阀
9 249604-027                               胶管
10 250008-266                              截止阀
11 250021-322                              护线接头
12 250026-860                              水位开关
13 250041-069                              法兰式止回阀
14 807601-010                              变径接头
15 807800-005                              堵头
16 828405-125                              螺栓
17 828408-150                              螺栓
18 828408-200                              螺钉
19 837808-125                              弹簧垫圈
20 841215-004                              不锈钢管
21 860104-025                              接头
22 860108-050                              接头
23 860204-025                              弯头
24 868504-025                              接头
25 88290004-703                            T型抱箍
26 88290004-704                            T 型抱箍
27 88290004-735                            软管卡箍
28 88290007-143                            半法兰
29 88290008-415                            承压胶管
30 88290008-420                            承压胶管
31 88290015-460                            连接弯管
32 88290015-483                            扣式塞头
33 88290015-573                            回油视油镜支架
34 88290017-334                            胶管
35 88290018-134                            机头回油管
36 88290018-139                            油管
37 88290018-213                             冷却器组件
38 88290018-374                             上水管
39 88290018-380                             不锈钢接管
40
41 88290018-388                              油滤支座
42 88290018-400                              油管支座
43 88290018-498                              冷却器盖板
44 88290018-499                              维修盖板
45 88290019-413                              不锈钢接管
46 88290019-414                              下水管
47 88290019-415                              上水管II
48 88290019-435                              风扇防护罩(右)
49 88290019-436                              风扇防护罩(左)
50 88290019-437                              皮带轮防护罩（左）
51 88290019-438                              皮带轮防护网(右)
52 88290019-531                              导风罩
53 88290019-577                              挡板
54 88290019-730                              油冷进油管
55 88290019-731                              油冷进油管
56 88290019-732                              油冷出油管
57 88290019-733                              油冷出油管
58 88290019-734                              管夹支架
59 88811112-045                              六角螺栓
60 88812106-016                              六角螺栓
61 88812108-080                              六角螺栓
62 88812110-030                              六角螺栓
63 88812112-035                              六角螺栓
64 88812112-040                              六角螺栓
65 88813108-016                              六角法兰面螺栓
66 88813108-020                              六角法兰面螺栓
67 88822108-076                              六角法兰面螺母
68 88831108-016                              平垫圈
69 88831110-020                              平垫圈
70 88832106-016                              弹簧垫圈
71 88832108-021                              弹簧垫圈
72 88832110-026                              弹簧垫圈
73 88832112-031                              弹簧垫圈
74 88833108-020                              大平垫圈
75 88833108-022                              大平垫圈
76 88833112-033                              大平垫圈
77 88842035-056                               O 形圈
78 88851052-085                               单管夹
气量调节及控制系统零部件目录

1 02250058-442                               控制管路过滤器
2 02250069-820                               卸荷阀
3 02250100-042                               放空阀
4 02250117-385                               三通球阀
5 02250118-585                               节流子
6 042148                                     压差指示器
7 045099                                     压力调节阀
8 048059                                     压力调节阀
9 048354                                     减压阀
10 048448                                    压力表
11 049905                                    单向阀
12 250025-294                                接头
13 250032-761                                供气压力表
14 806630-020                                三通接头
15 807600-005                                异径接头
16 807602-010                                内外接头
17 807800-005                                堵头
18 823202-000                                接头
19 860104-025                                接头
20 860108-050                                接头
21 860204-012                                弯头
22 860204-025                                弯头
23 860208-050                                弯头
24 860304-025                                弯头
25 860504-025                                弯头
26 861804-025                                三通
27 868430-010                                三通
28 868504-025                                接头
29 868508-050                                接头
30 88290004-055                              柴油胶管
31 88290004-726                              软管卡箍
32 88290007-400                              排气温度表
33 88290008-411                              承压胶管
34 88290008-412                              承压胶管
35 88290008-413                              承压胶管
36 88290008-415                              承压胶管
37 88290008-416                              承压胶管
38 88290008-417                              承压胶管
39 88290008-423                              承压胶管
40 88290008-425                              承压胶管
41 88290010-699                              电子排水阀
42 88290016-187                              承压胶管
43 88290017-331                              承压胶管
44 88290017-340                              承压胶管
45 88290018-262                              控制元件安装架
46 88290018-302                              接头
47 88290018-449                              支架
48 88291001-300                              气水分离器支
49 88812108-025                              六角螺栓
50 88821108-068                              六角螺母
51 88831108-016                              平垫圈
52 88832108-021                              弹簧垫圈
53 88833108-022                              大平垫圈
    电气控制系统零部件目录


1 88290004-085                           蓄电池
2 88290002-310                           电池座
3 88290003-043                           电池盒盖
4 88290018-566                           总开关支架
5 88290014-035                           电源开关
6 88290015-538                           急停按钮
7 88290018-600                           线束总成
8 88290018-601                           仪表板总成
9 88290002-311                           螺柱
10 88832110-026                          弹簧垫圈
11 88821110-084                          六角螺母
12 88811108-030                          六角螺栓
13 88831108-016                          平垫圈
14 88832108-021                          弹簧垫圈
15 88821108-068                          六角螺母
16 88811110-030                          六角螺栓
17 88831110-020                          平垫圈
18 88290007-116                          密封条
19 88290002-222                          接线端子
20 88290018-298                          电池专用电缆
21 88290019-651                          电柜支架
22 88290019-652                          电柜总成
